MEDIDAS DE LOS CUADROS

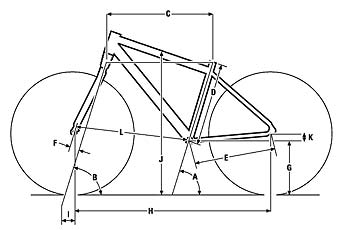

| Optimo, Furio and Verso Mtn HeadShok Geometry Chart |
Petite |
Small |
Medium |
Large |
X Large | |
| Seat Tube Angle (degrees) | A |
75 |
73.5 |
73.5 |
73 |
72.5 |
| Head Tube Angle (degrees) | B |
70 |
70 |
70 |
70 |
70 |
| Horizontal Top Tube Length (in/cm) | C |
21.4/54.4 |
22.3/56.5 |
23.3/59.1 |
24.3/61.6 |
25.0/63.5 |
| Seat Tube Length to Top (in/cm) | D |
14/35.6 |
16/40.6 |
18/45.7 |
19.7/50.0 |
21.7/55.1 |
| Chainstay Length (in/cm) | E |
16.7/42.4 |
16.7/42.4 |
16.7/42.4 |
16.7/42.4 |
16.7/42.4 |
| Fork Rake (in/cm) | F |
1.8/4.6 |
1.8/4.6 |
1.8/4.6 |
1.8/4.6 |
1.8/4.6 |
| Bottom Bracket Height (in/cm) | G |
11.7/29.8 |
11.7/29.8 |
11.7/29.8 |
11.7/29.8 |
11.7/29.8 |
| Wheelbase (in/cm) | H |
40.7/103.4 |
41.3/104.9 |
43.6/110.8 |
42.7/108.4 |
44.0/111.8 |
| Trail (in/cm) | I |
2.9/7.3 |
2.9/7.3 |
2.9/7.3 |
2.9/7.3 |
2.9/7.3 |
| Standover Height (in/cm) | J |
29.1/73.9 |
30.1/76.4 |
31.1/78.9 |
31.8/80.9 |
32.7/83.1 |
| Bottom Bracket Drop (in/cm) | K |
1.4/3.6 |
1.4/3.6 |
1.4/3.6 |
1.4/3.6 |
1.4/3.6 |
| Front-Center Distance (in/cm) | L |
24.1/61.3 |
24.7/62.8 |
26.1/66.3 |
27.0/68.6 |
27.4/69.7 |
